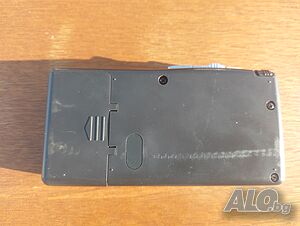

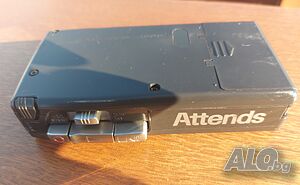

Микрокасетофон Sony M-330 диктофон

Колекционерски Sony Microcassette-corder M-330. Нямам слушалки и зарядно към него. Някакво инфо от нета -

Details
Special Tape or Cassette-Format
Power type and voltage
Batteries / addl. power jack / AA: 2 x 1.5 / DC 3 Volt
Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 cm = 1.6 inch
Power out
0.15 W (unknown quality)
Material
Plastics (no bakelite or catalin)
from Radiomuseum.org
Model: Microcassette-Corder M-330 - Sony Corporation; Tokyo
Shape
Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD)
120 x 25 x 60 mm / 4.7 x 1 x 2.4 inch
Notes
Mircocassette-Recorder with 2-track, 1-channel monaural recording system.

Tape speeds: 2.4 and 1.2 cm/sec
Frequency response: 250 - 4000 Hz (at 2.4 cm/s)
Incorporated condenser microphone
Jack for DC input, earphone and external microphone

Uses Microcassette tape MC-30 or similar.

Tape transport mechanism MZ-330-14, similar to model M-740.

Net weight (2.2 lb = 1 kg)
0.150 kg / 0 lb 5.3 oz (0.33 lb)
