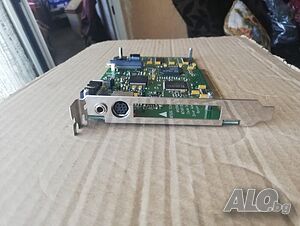

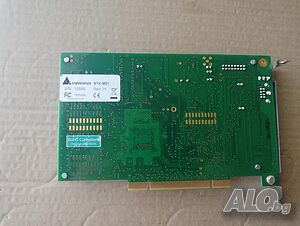

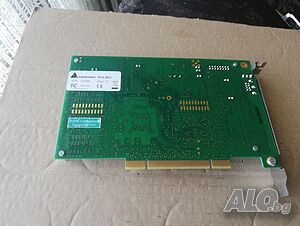

Merging Technologies Mykerinos Digital Audio Workstation [Win PC] PCI

Продавам Merging Technologies Mykerinos Digital Audio Workstation [Win PC] PCI

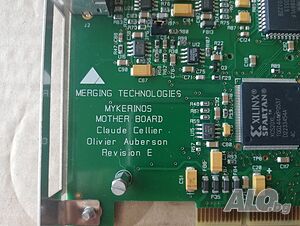

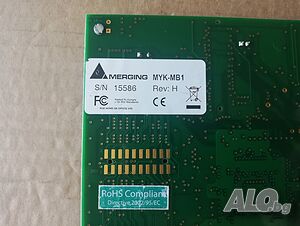

Model: Mykerinos Mother Board REV:E
Brand: Merging Technologies

Mykerinos Features Overview

Mykerinos is Merging’s answer to create a leading edge high performance audio processing card solution. It builds upon over 10 years
of experience designing and manufacturing PC based Audio Cards and incorporates hundreds of users feedbacks into a compact flexible fourth generation solution.
Here is a quick summary of features:
• Driver support for Windows XP/Vista
• Very cost effective
• Support for all sampling rates from 32 kHz up to 192 kHz, as well as DSD and DXD.
• Open Plug-In (all C-code) architecture supporting Surround-sound and DVD formats
• Highly flexible modular I/O architecture can be tailored to user’s needs by the use of dedicated daughter boards. This I/O
modularity offers a unique opportunity to meet a wide range of market requirements
• Current Audio I/O daughter card options include ADAT - S/PDIF, MADI, AES/EBU, AES/EBU II, TDIF, SDIF and DUAL
• Very high performance card capable of high track playback (up to 64 tracks) and vast I/O capabilities (up to 64 channels)
• Multiple cards interconnected through XDTDM (eXtreme Definition Time Domain Multiplex) bus with support of up to 512 audio channels

Mykerinos specific
• PCI V2.1 compliant. Supports both 5 Volts and 3.3 Volts PCI environments
• Based on 2nd generation Philips Trimedia 32 bit floating point processing VLIW technology
• High Performance (upto > 400 MFlops sustained, 800 MB/s SDRAM interface, etc.)
• On board Sync Connector, which includes Video Sync I/O supporting PAL, NTSC and all trilevel HDTV rates, VITC reader
and generator, LTC reader and generator and built-in time code insertion into Video window.
• 2 channel 24 bit 96 kHz on-board monitoring output

The Mykerinos board is based on the Philips Trimedia TM-1300 Chip and its associated SDRAM running at 144 MHz. The other peripherals are:
• 1 FPGA (Field Programmable Gate Array), used to manage the control signals
• 1 Timecode reader - generator (LTC and VITC)
• 1 Video PLL, used to lock to any incoming Video reference such as black-burst PAL, NTSC or Tri-level HDTV
• 1 stereo 24 bit 96kHz D/A for onboard audio monitoring.
Up to 64 audio channels are conveyed over the Trimedia high-speed “Video IN” and “Video OUT” buses through connector J4 to/from the specific I/O daughter card.

Mykerinos On-Board Connectors and Jumpers

The connectors implemented on the Mykerinos board are as follows:
• JP1 - header 1x2, Reserved.
• JP2 - Video/TC connector 8x2, offering the same functionalities as J2 but for internal connection
• JP3 - header 1x2, used to connect internally a Video Reference Sync (instead of CVS1IN signal)
• J2 - 1 mini Din 8 pins, used to transfer Video and Timecode signals
• J3 - 1 stereo headphone monitoring output 3.5mm mini-jack connector
• J4 - 1 mezzanine connector 32x2, used to connect I/O daughter cards
• JP4 - 75ohm termination for CVS1IN (input from J2, JP2 or JP3)
• JP5 - 75ohm termination for WCKIO (input from J2 or JP2)
• JP6 - monitoring gain attenuation (-12dB when open) for the left channel
• JP7 - monitoring gain attenuation (-12dB when open) for the right channel

Картата е в перфектно състояние.
Тествана е и работи без забележки.
Пращам с Еконт (преглед и тест )
