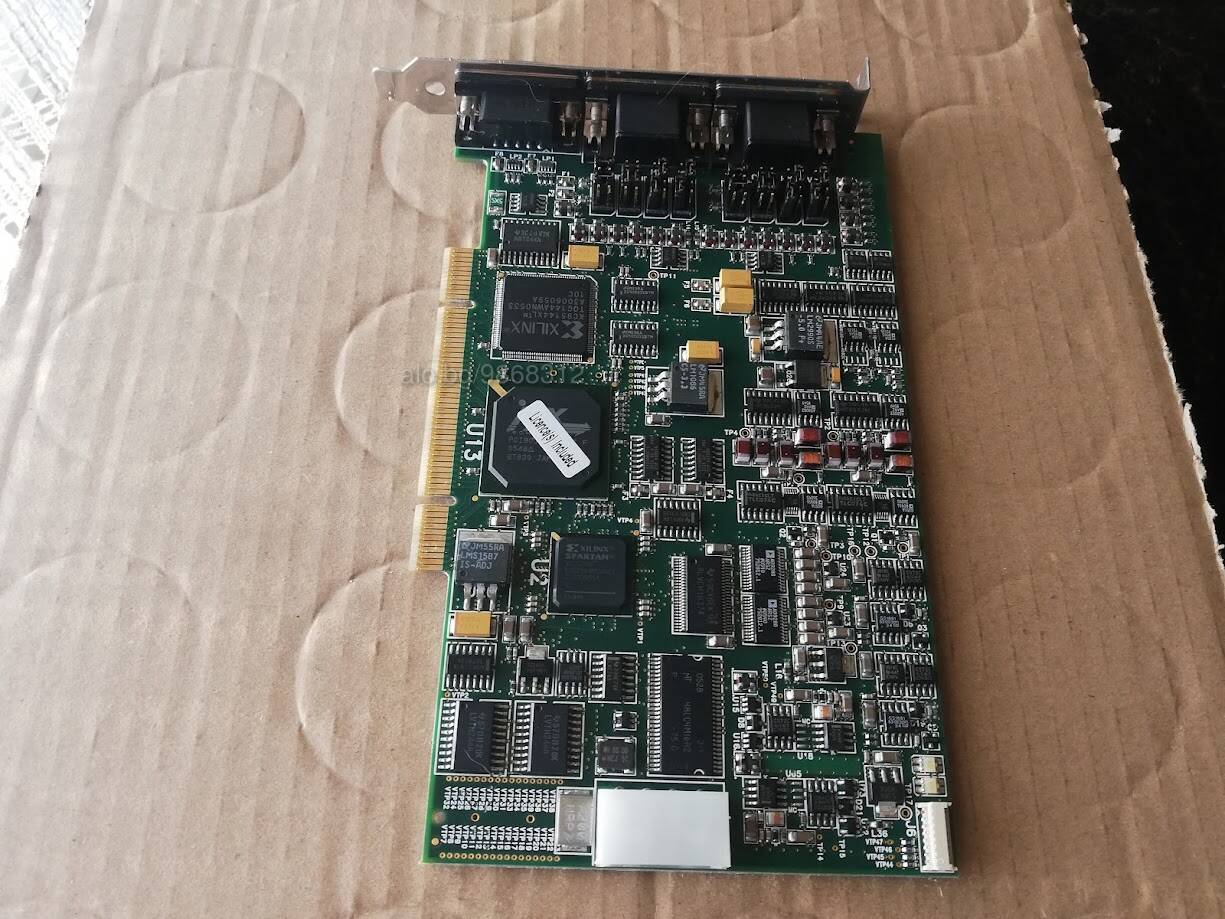

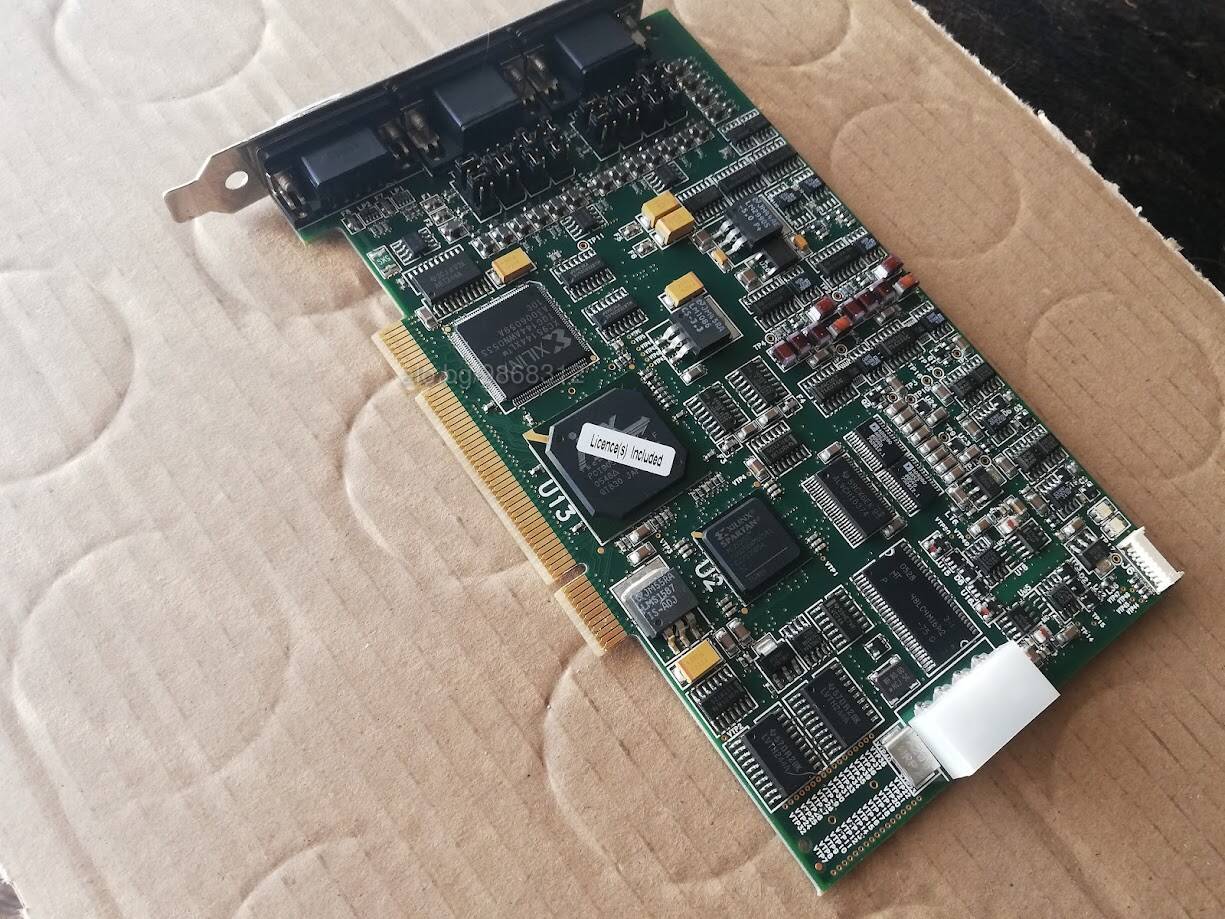

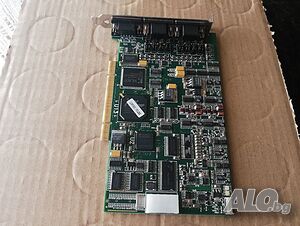

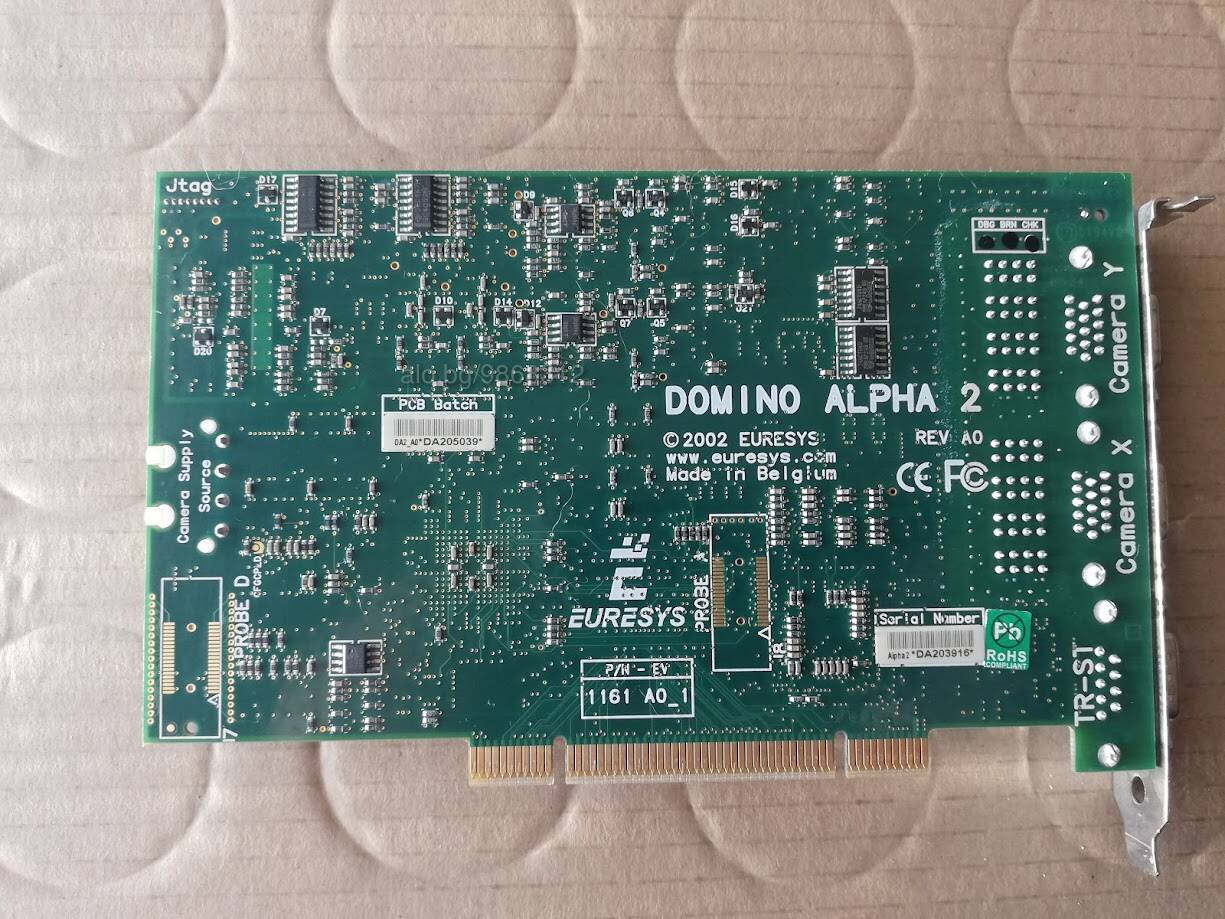

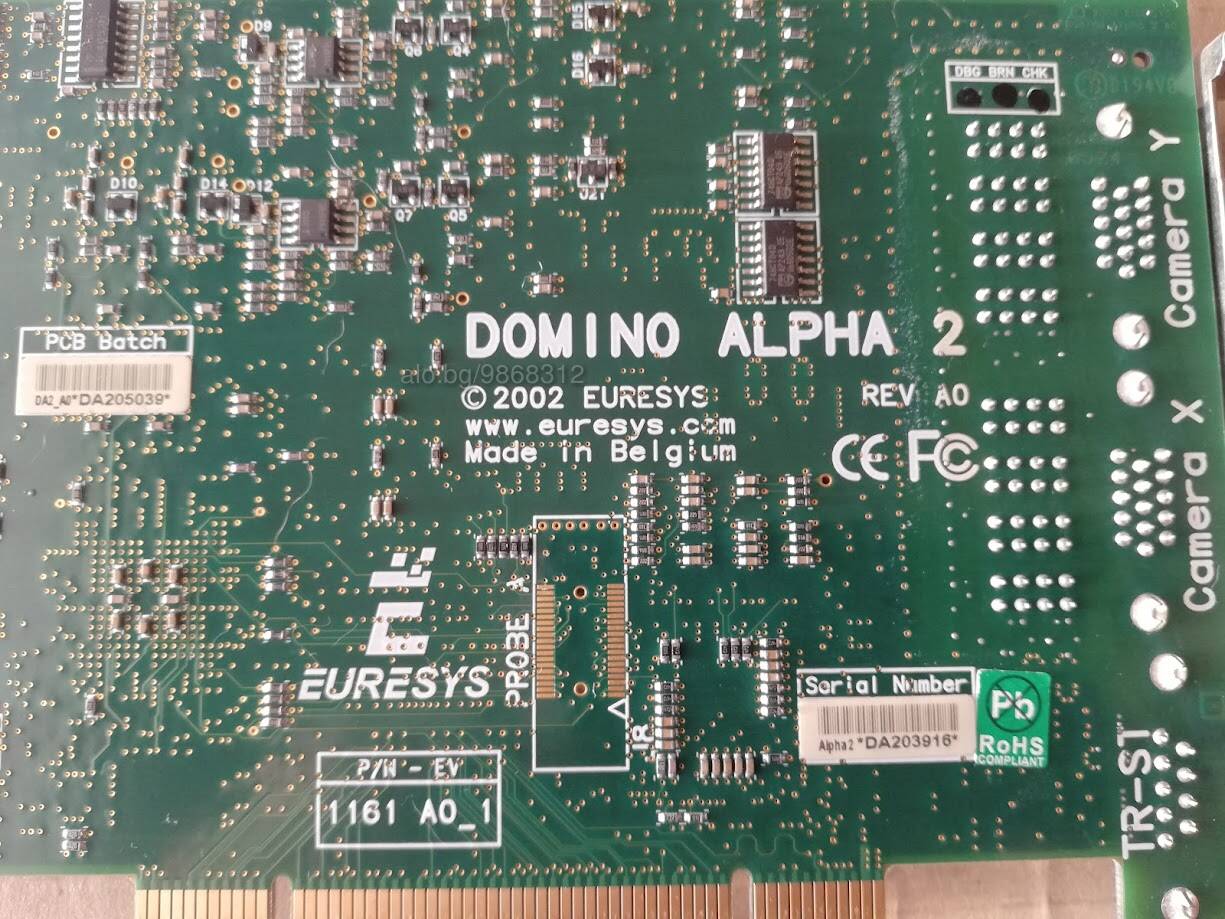

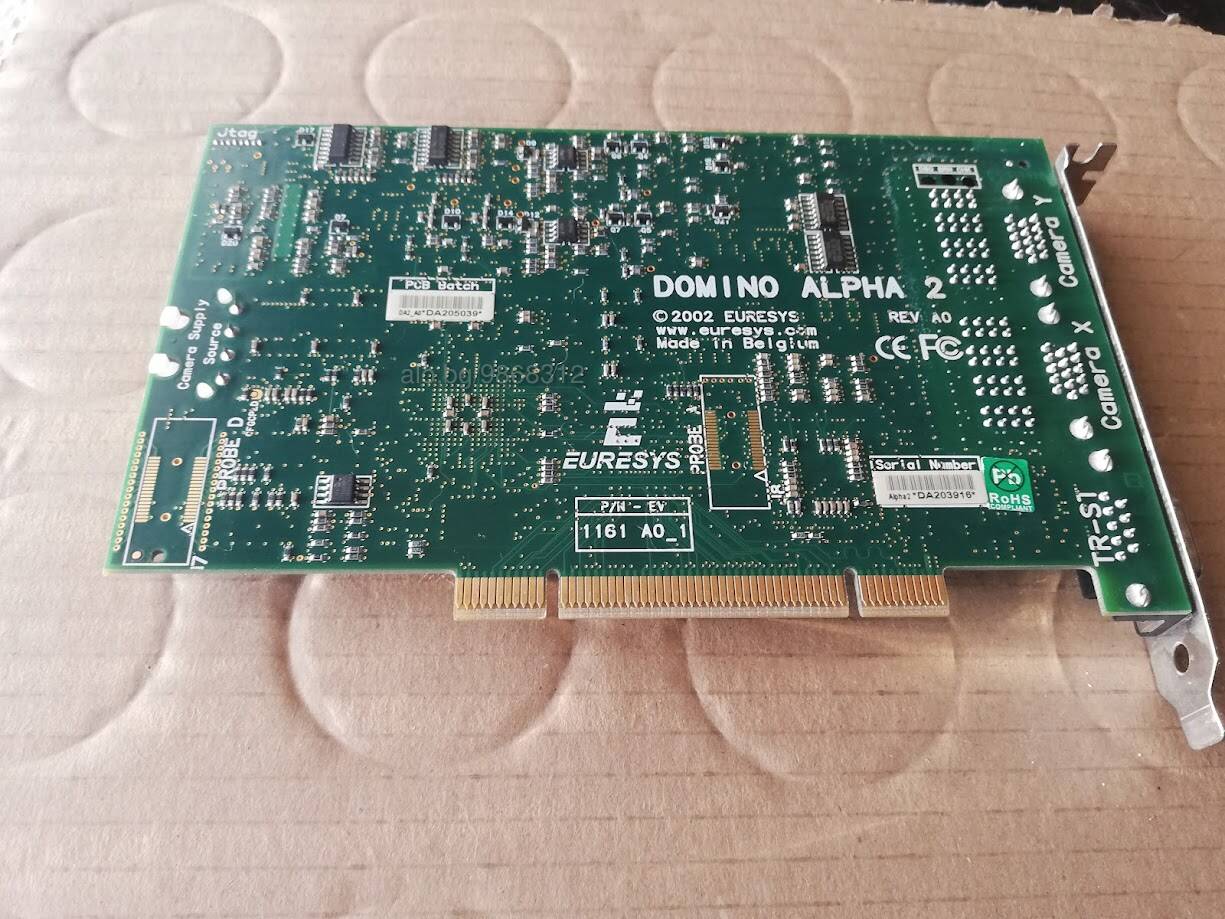

Euresys Domino Alpha 2 Video Recorder Industrial PCI Card
Продавам Euresys Domino Alpha 2 Video Recorder Industrial PCI Card
Dimensions: 176 mm x 107 mm 6.93 in x 4.21 in
PCI connector: 32-bit, 33 MHz,3.3 V / 5 V signaling
Video connections: 1 single-tap analog camera
Description
The Domino series is a range of high-end PCI and PCI Express frame grabbers for analog cameras. DOMINO-ALPHA-2 supports any system function associated to industrial acquisition, such as camera asynchronous reset, exposure and strobe control. The latest Domino boards - Melody, Harmony and Symphony PCIe - are based on an innovative proprietary technology called D Technology. It provides a perfect digital image with the benefits of a proven analog environment: low-cost, reliable cabling and connections, smallest cameras, and low power. The D Technology offers unequalled signal stability and image quality to the analog acquisition. These boards are further enhanced by extensive on-board I/O capabilities.
DOMINO ALPHA 2 frame grabber is a PCI bus mastering agent that directly stores the acquired images into the PC physical memory without CPU involvement. As a unique feature, a Euresys board automatically recovers the scatter-gather virtual memory mapping to present the data as a regular bitmap image in a user allocated memory buffer.
The Domino series and the MultiCam drivers interface an impressive choice of different analog cameras.
The Domino Melody, Harmony and Symphony PCIe support top-notch cameras such as dual, triple and quad-speed. As a unique feature, they have strictly no jumpers. Even the 75-ohm termination resistor is a software selectable feature.
In order to facilitate the integration of the board into the application system, the new Domino boards offer digital I/O lines configurable for trigger input, strobe output or general purpose control.
Features
5V Power supply
Support of analog cameras
High-accuracy 10-bit 40/60 MHz A/D converters
On-board memory
Trigger, strobe, enhanced I/O lines
MultiCam drivers for Microsoft Windows and Linux
Bus Mastering
Interfaced Cameras
Trigger, Strobe, Enhanced I/O Lines
Specifications
Form factor: 32-bit, 33 MHz PCI
Analog cameras: Single-tap = Up to 4, Dual-tap = Up to 2

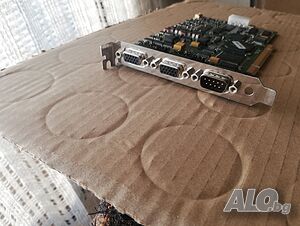

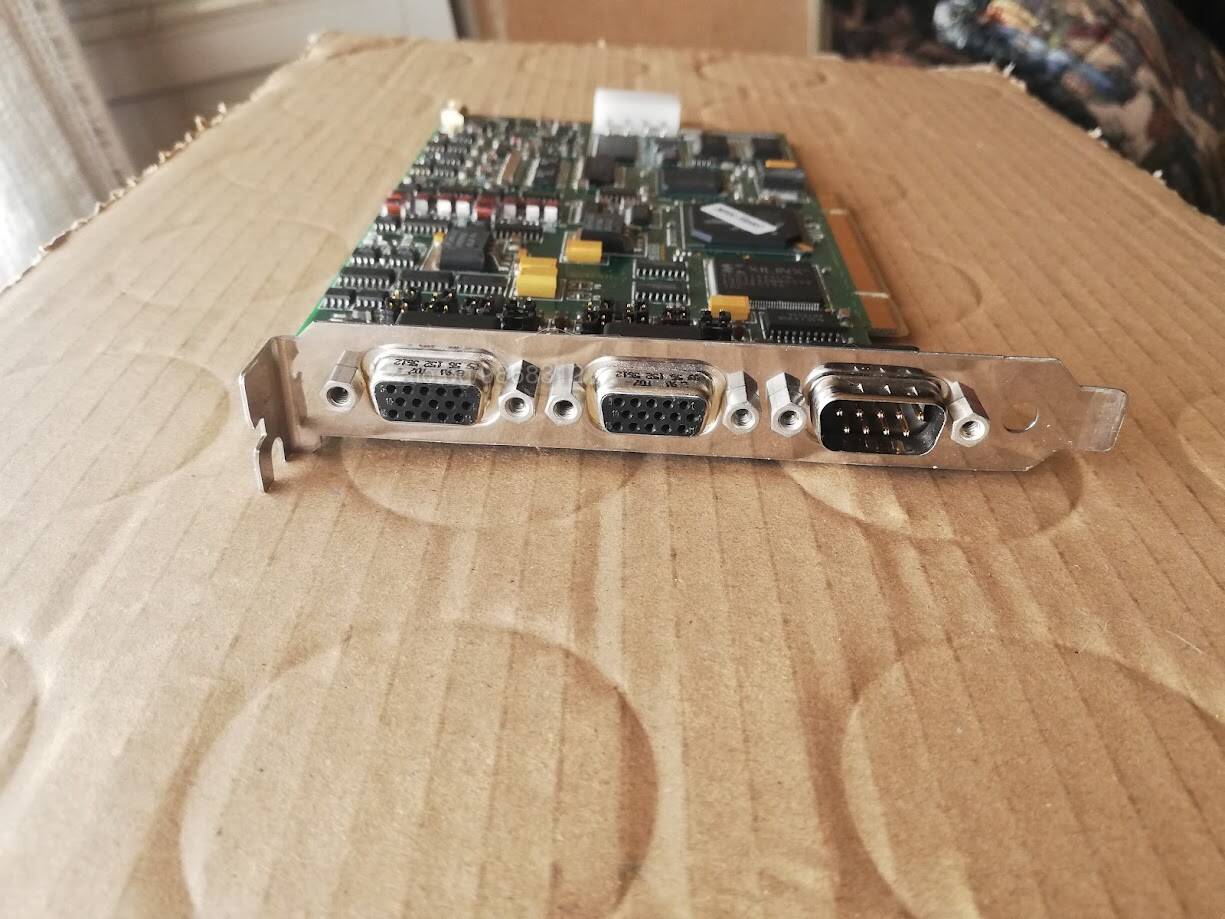

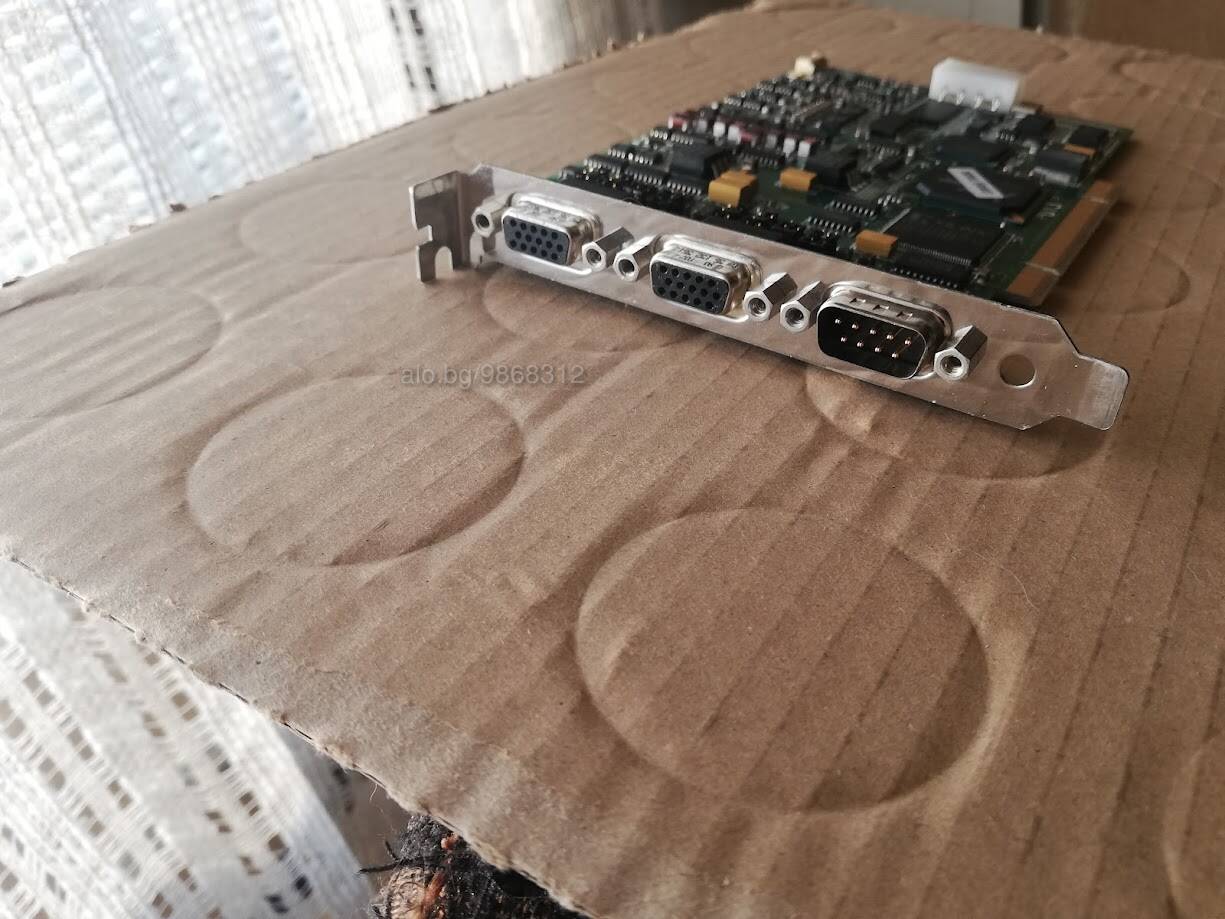

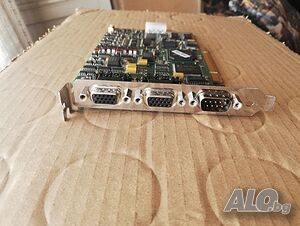

Video connector: On the bracket = 2 x HD15
Sampling resolution / Max. frequency: Max. line rate operation a = 8 bits @ 32 MHz
Max. line rate: Synchronous mode = 31.5 kHz, Asynchronous mode = 31.5 kHz
Delivery bandwidth: 90 MB/s
On-board memory: 8-MB
Pre-processing: 2 x 8-bit LUT
Connector type: On the bracket = DB-9M
Input lines: 3 TTL
Output lines: 3 TTL
12V camera power Connector type Internal header: 1 Molex 4-pin
Internal connectors: video, system and power
Картата е в перфектно състояние.
Тествана е и работи без забележки.
Пращам с Еконт (преглед и тест )
