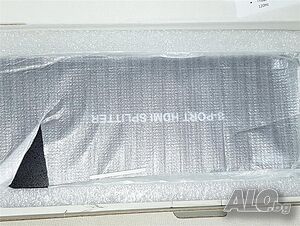

8 портов HDMI splitter
HDMI Сплитер с един вход към 8 устройства.
Продава се без адаптер.
Модел SX-SP07-4K2K: Разпределя 1 HDMI източник към 8 HDMI дисплея едновременно.
Поддържа всички 3D формати и Dolby TrueHD и DTS-HD Master цифрово аудио.
Резолюции до 4K Ultra HD и 2K (3840 x 2160 @ 30Hz) и Full HD 1080p при 60 Hz, 720p / 1080i при 120 Hz.
HDMI 2.0 1x8 HDMI Splitter, HDCP2.2
Supports 3D, 4Kx2K@60Hz(YUV 4:4:4), 18G, HDR, EDID
Simultaneously displays an UItra Hi-Def source on up to eight UItra HD displays.
Supports resolutions up to UItra HD 4Kx2K(3840x2160@60Hz YUV 4:4:4 ).
Supports three kinds of EDID handling abilities.
Supports HDCP2.2/1.4 Compliant.
Supports 36 bit Deep Color.
Supports LPCM 7.1, Dolby TrueHD, Dolby digital Plus, and DTS-HD Master Audio.
Support 3D.
Bandwidth 18G.
Support HDR.
Support online firmware upgrade via Micro USB Port.
SPECIFICATIONS
Operating Temperature Range -5 to +40°C(+23 to +104°F)
Operating Humidity Range 5 to 90%RH (No Condensation)
Bandwidth frequency 18Gbps
HDCP 2.2
Input ports: 1xHDMI (Female)
Outputs ports: 8xHDMI outputs (Female)
Resolution outputs up to 4Kx2K(3840x2160@60Hz YUV 4:4:4)
Размери :(LxWxH) 247.2x110x17mm
Мощност: 5W(MAX)
Transmission Distance 15m(Maximum)over standard HDMI cable/26AWG
Тегло: 610 гр.
*****
